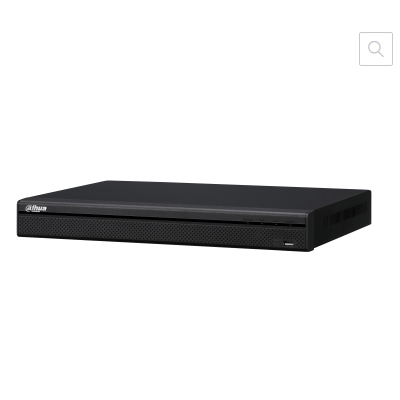

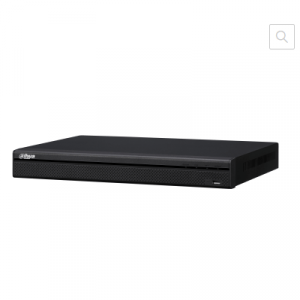

Dahua DH-XVR1A08 8CH Cooper 1U Digital Video Recorder


Dahua DH-XVR1A08 8CH Cooper 1U Digital Video Recorder

4/8 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder> H.264 video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 5/10 channels IP camera inputs, each channel up to 2MP/5MP; Max 20/40Mbps Incoming Bandwidth
> Long transmission distance over coax cable
> Supports 1 SATA HDD, up to 6TB

35,500.00

Compare

Dahua DH-XVR1A08 8CH Cooper 1U Digital Video Recorder

Dahua DH-XVR1A08 8CH Cooper 1U Digital Video Recorder

Dahua, as a technology leader, is always the first-ever developed shining

new technology in the security industry, and today we present Cooper

Series XVR. Designed as a full compatibility product, XVR is able to provide

end-user the simplicity of the analog system, namely lower system cost, simple

installation, and use of an existing cable. It is ideal for a wide range of civil

applications such as retail stores, home protection, and so on.



Featuring high performance with attractive costs, the Cooper Series offers a

a great solution for users facing budget constraints who both require quality

and performance.

Dahua DH-XVR1A08 8CH Cooper 1U Digital Video Recorder

HDCVI/AHD/TVI/CVBS/IP Auto-detect

The XVR can auto recognize the signal of the front-camera without any setting.

It makes operation more friendly and convenient.



IPC Input Supported

The XVR1A04 supports up to 2MP IPC input, and XVR1A08 supports up to

5MP IPC input.



Coaxial Audio/Upgrade/Alarm

Dahua DH-XVR1A08 8CH Cooper 1U Digital Video Recorder System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 4/8 Channel, BNC
HDCVI Camera 1080P@25/30fps, 720P@25/30fps
AHD Camera 1080P@25/30, 720P@25/30fps
TVI Camera 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 4CH: 4+1, each channel up to 2MP8CH: 8+2, each channel up to 5MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Video Compression H.264
Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Dahua DH-XVR1A08 8CH Cooper 1U Digital Video Recorder

Record Rate

Main Stream:4CH: All channel 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)

8CH: the 1st channel 1080N/720P(1~25/30fps), others 1080N(1~12fps)/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)

Sub steram:

4CH: CIF/QCIF (1~15fps)

8CH: CIF/QCIF (1~7fps)

Video Bit Rate 32Kbps ~ 4096Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
Display
Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Dahua DH-XVR1A08 8CH Cooper 1U Digital Video Recorder

Multi-screen Display

When IP extension mode not enabled:4CH: 1/4

8CH: 1/4/8/9

When IP extension mode enabled:

4CH: 1/4/6

8CH: 1/4/8/9/16

Dahua DH-XVR1A08 8CH Cooper 1U Digital Video Recorder

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 1 RJ-45 Port (100M)
Dahua DH-XVR1A08 8CH Cooper 1U Digital Video Recorder

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
