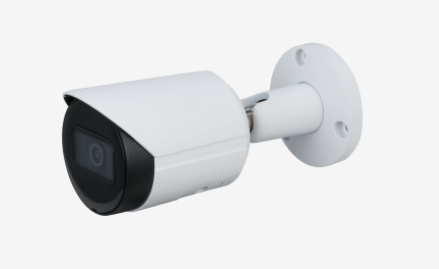

Dahua DH-IPC-HFW2231SP-S-0360B-S2

Dahua DH-IPC-HFW2231SP-S-0360B-S2

System Overview
With upgraded H.265 encoding technology, Dahua Lite series camera has
efficient video encoding capacity, which saves bandwidth and storage
space. This camera adopts the latest starlight technology and displays
better colorful image in the environment of low illumination. It supports
SD card storage, waterproof function, dust-proof function, complying to
the standards of IP67.

Dahua DH-IPC-HFW2231SP-S-0360B-S2

Functions
Smart ( H.265+ & H.264+ )
Adopting advanced algorithm of auto stream control according to the
environment, Dahua smart encoding technology realizes the higher

efficiency than (H.265 & H.264 ), providing high-quality

video, and reducing
the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You
can get clear details in the environment of strong brightness contrast.
In high brightness and back- light environment, bright region and dark
region with strong light source, you can also get clear images.
· 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 × 1080) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD
card, SD card full, SD card error, network disconnection, IP conflict,
illegal access, voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power support
· IP67 protection
Starlight
Dahua Starlight technology mainly applies to the environment

of low illumination, and it can provide clear colorful video. Even

in the environment
of min. illumination, the technology can guarantee

the good image effect.
Intelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent

detection, such as tripwire and intrusion and so on.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking in 1
m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance

(wide voltage range), an
