DAHUA DH-IPC-HDBW1220EP

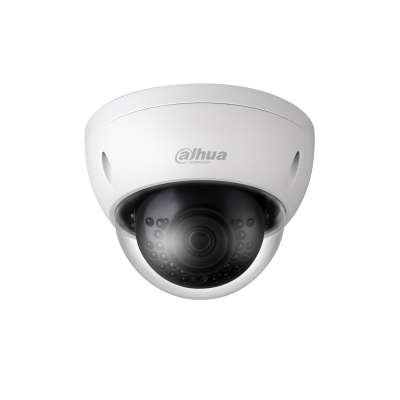

DAHUA DH-IPC-HDBW1220EP Camera

Image Sensor1/2.9? 2Megapixel progresive CMOSEffective Pixels1920H)x1080(V)RAM/ROM256MB/16MBScanning

SystemProgressiveElectronic Shutter SpeedAuto/Manual, 1/3(4)~1/100000sMinimum Illumination0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)S/N RatioMore

than 50dBIR DistanceDistance up to 30m(98ft)IR On/Off ControlAuto/

ManualIR LEDs24LensLens TypeFixedMount TypeBoard-inFocal

Length2.8 mm (3.6 mm optional)Max. ApertureF2.0/F2.0Angle of

ViewH:110?/83?,V:57?/44?Focus ControlFixedClose Focus DistanceN/ADORI DistanceLensDetectObserveRecognizeIdentify2.8 mm45m(147ft

)18m(59ft)9m(30ft)5m(16ft)3.6 mm57m(187ft)23m(75ft)11m(33ft)

6m(20ft)PTZPan/Tilt RangePan:0?

~355? ;Tilt:0? ~65? ;Rotation:0? ~355?VideoCompressionH.264+/

H.264Streaming Capability2 StreamsResolution1080P(1920?1080)/

1.3M(1280?960)/720P(1280?720)/D1(704?576/704?480)/

CIF(352?288/352?240)Frame Rate2M (1 ~ 25/30fps)s)D1/CIF(1 ~ 25/30fps)Bit

Rate ControlCBR/VBRBit RateH264:24K ~ 8192KbpsDay/NightAuto(ICR)

/ Color / B/WBLC ModeBLC / HLC / DWDR

DAHUA DH-IPC-HDBW1220EP

System Overview
The IR Megapixel Fixed MiniDome camera delivers 2MP resolution with
a choice of 2.8mm or 3.6mm wide angle lens options. The camera’s
elegant blend of aesthetics combined with a range of easy mounting
solutions provides an excellent choice for a variety of small to mid-size
applications at an affordable price.

Functions
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for
applications with fluctuating lighting conditions, delivering color images
during the day and automatically switching to monochrome as the scene
darkens
DAHUA DH-IPC-HDBW1220EP

Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the
operator to monitor specific areas of a scene while still maintaining
overall situational awareness of less important areas

Smart IR
With IR illumination, detailed images can be captured in low light or
total darkness. The camera’s Smart IR technology adjusts to the intensity
of camera’s infrared LEDs to compensate for the distance of an object.
Smart IR technology prevents IR LEDS from whiting out images as they
come closer to the camera. The camera’s integrated infrared illumination
provides high performance in extreme low-light environments up to 30m
(98ft).Image flip

DAHUA DH-IPC-HDBW1220EP
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera’s image to be rotated in 90° increments for

Environmental
With a temperature range of -30 °C to +60 °C (-22°F to +140 °F), the
camera is designed for extreme temperature environments. The camera
complies to an IK10 impact rating making it capable of withstanding the
equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous
dust and water immersion tests, the IP67 rating makes it suitable for
demanding outdoor applications. For enviorments with rain, sleet, snow
and fog, an integrated wiper provides users with clear visibility at all
times.
Protection

DAHUA DH-IPC-HDBW1220EP Supporting ±10% input voltage tolerance, this camera suits even the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides protectection against the camera and its structure from
the effects of lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer
Smart H.264+

DAHUA DH-IPC-HDBW1220EP Delivering high quality video without straining the network, Smart
H.264+ is the optimized implementation of H.264. The Smart H.264+
encoding platform includes a scene adaptive encoding strategy, dynamic
GOP, dynamic ROI, flexible multi-frame reference structure and intelligent
noise reduction, providing a savings of up to 70% of bandwidth and
storage when compared with standard H.264
