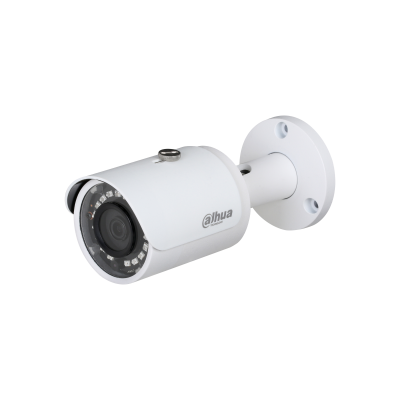

DAHUA 2MP POC BULLET

DAHUA 2MP POC BULLET

Add to wishlist
Compare

2MP HDCVI PoC IR Bullet Camera

> Max 30fps@1080P
> HD and SD output switchable
> 3.6mm fixed lens (2.8mm optional)
> Max. IR length 30m, Smart IR
> IP67, POC/DC12V

₦16,000.00

Compare
DAHUA 2MP POC BULLET Camera
Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)?1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000sNTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98feet)
IR On/Off Control Auto / Manual
IR LEDs 18
Lens

DAHUA 2MP POC BULLET

Lens Type

 Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F1.85
Angle of View H: 89.9? (103?/54.7?)
Focus Control N/A
Close Focus Distance 600mm (900mm, 2000mm)
23.62” (35.43″, 78.74”)
DAHUA 2MP POC BULLET Camera
Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
DAHUA 2MP POC BULLET IR Distance Up to 30m (98feet)
IR On/Off Control Auto / Manual
IR LEDs 18
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm Optional)
Max Aperture F1.85
DAHUA 2MP POC BULLET Angle of View H: 87.5° (103°); V: 47° (59°)
Focus Control N/A
Close Focus Distance 900mm (500mm)

35.43″ (19.69”)
DORI Distance
DAHUA 2MP POC BULLET Note: The DORI distance is a “general proximity” of distance which

makes it easy to pinpoint the right camera for your needs. The DORI

distance is calculated based on sensor specification and lab test result

according to EN 62676-4 which defines the criteria for Detect, Observe

, Recognize and Identify respectively.
DAHUA 2MP POC BULLET DORI

Definition

 Distance
Detect 25px/m

(8px/ft)

 2.8mm: 37m(122ft)

3.6mm: 53m(175ft)
Observe 63px/m

(19px/ft)

 2.8mm: 15m(49ft)

3.6mm: 21m(70ft)
Recognize 125px/m

(38px/ft)

 2.8mm: 8m(25ft)

3.6mm: 11m(35ft)
Identify 250ppm

(76px/ft)

 2.8mm: 4m(12ft)

3.6mm: 5m(17ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface N/A
Eelectrical
Power Supply POC/12V DC ±30%
Power Consumption Max 4.3W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance IP67
Construction
Casing Aluminium
Dimensions 164.7mm×70mm×71.6mm (6.48″×2.76″×2.82″)
Net Weight 0.38kg (0.84lb)
Gross Weight 0.47kg (1.04lb)
