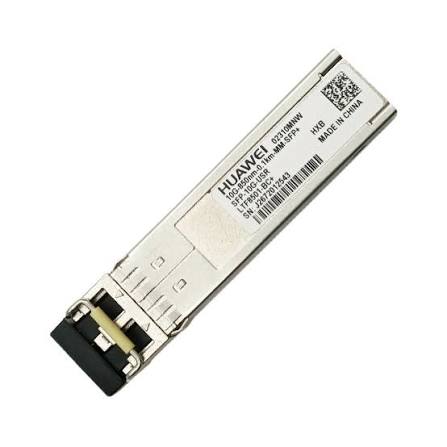

SFP-10G-USR, Huawei SFP+ Optical Transceiver, 10G SFP+, Multi-mode 850nm, 0.1km

70,000

11 products sold in last 11 hours
Selling fast! Over 5 people have in their cart

The Huawei SFP-10G-USR is an enterprise-class SFP+ optical transceiver designed for short‑reach 10G links over OM3 multimode fiber. Operating at 850nm with 10Gbps throughput and an LC connector, this compact module delivers reliable, low‑latency connectivity up to 0.1km, making it ideal for top‑of‑rack, aggregation, and server access deployments in modern data center and enterprise network environments.

23 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
Brand Huawei Huawei Huawei Huawei
Data Rate 10Gbps 1.25Gbps 10Gbps 10Gbps
Wavelength 850 nm 1490 nm Tx / 1310 nm Rx 1550 nm 1491 nm
Transmission Distance 0.1 km 40 km 80 km 70 km
Connector Type LC LC LC LC
Compliance Standard 10GBASE-USR n/a n/a IEEE 802.3ae

Optional Add-ons

Model Number Description
SFP-10G-ZR Huawei SFP+ optical transceiver, 10G 1550nm 80km single‑mode for long-reach backbone links.
SFP-10G-ZCW1491 Huawei 10G CWDM SFP+ module, 1491nm 70km SMF for metro CWDM aggregation.
QSFP-40G-iSR4 Huawei QSFP+ optical transceiver, 40G 850nm multimode 150m for spine-leaf uplinks.

Huawei SFP-10G-USR Specification

Model SFP-10G-USR
Brand Huawei
Transceiver form factor SFP+
Transmission speed 10Gbps
Center wavelength 850 nm
Standard compliance 10GBASE-USR
Connector type LC
Applicable cable and maximum transmission distance
Multimode fiber (OM3): 0.1 km
Transmit power -7.3 to -1.0 dBm
Maximum receiver sensitivity -10.7 dBm
Overload power 0.5 dBm
Extinction ratio 3.0 dB
Operating temperature 0°C to 70°C (32°F to 158°F)
Net Dimension (D x W x H) 145 x 80 x 35mm
Weight 0.58 kg
