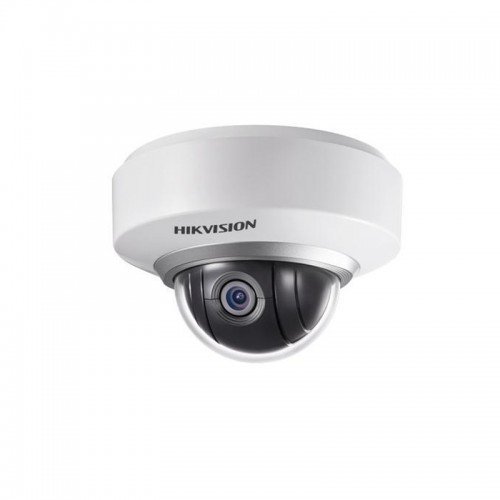

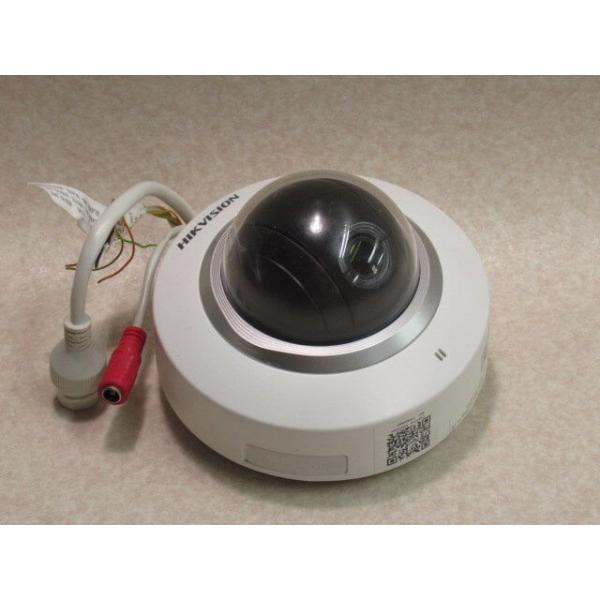

Hikvision DS-2DE2103-DE3 PTZ Camera

d

Hikvision DS-2DE2103-DE3 PTZ Camera

1/3″ Progressive Scan CMOS
 1280 x 720/1920 x 1080
 2X/3X Zoom
 DWDR
 Support WiFi
 3D intelligent positioning function
 PoE(802.3af)
 Support cloud P2P
 Support plug & play

Compare

Hikvision DS-2DE2103-DE3 PTZ Camera

Camera
Image Sensor: 1/3″ Progressive Scan CMOS
Effective Pixels: 1280(H) × 720(V)/1920(H) × 1080(V)
Signal System: PAL/NTSC
Minimum Illumination: F2.0, AGC On : Color : 0.05 lux, B/W : 0.01 lux
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
WDR: DWDR
Shutter Time: 1/1~1/10,000s
Day& Night: ICR
Digital Zoom: 16X
Privacy Masking: 8 privacy masks programmable
Auto Focus: Auto / Semi-automatic / Manual



Lens
Focal Length: 3.6~11mm, 3x(DS-2DE2103-DE3/W)
3.6~8.6mm, 2x(DS-2DE2202-DE3/W)
Zoom Speed: Approx.1s(Wide~Tele)
Angle of View: 77~37 degree, 3x(DS-2DE2103-DE3/W)
77-50 degree, 2x(DS-2DE2202-DE3/W)
Aperture Range: F2.0



Pan & Tilt
Pan Range: Pan: 0~350°
Pan Speed: Pan Manual Speed: 0.1°~50°/s
Tilt Range: Tilt: 0°~90°
Tilt Speed: Tilt Manual Speed: 0.1°~40°/s
Number of Preset: 300
Power loss recovery: Support
Park Action: Preset
PTZ Position Display: ON/OFF



Alarm
Alarm Input: 1
Alarm Output: 1
Alarm Actions: Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage



Input & Output
Audio Input: 1 built-in microphone; 1 audio input (Mic/Line in), 2~2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: 1 Audio output interface
Line level, impedance: 600Ω



Hikvision DS-2DE2103-DE3 PTZ Camera Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: DS-2DE2103-DE3/W:1280×720;
DS-2DE2202-DE3/W: 1920×1080
Frame Rate: DS-2DE2103-DE3/W: 50Hz: 25 fps (1280×720); 60Hz: 30 fps (1280×720)
DS-2DE2202-DE3/W: 50Hz: 25 fps (1920×1080); 60Hz: 30 fps (1920×1080)
Main Stream: DS-2DE2103-DE3/W: 50Hz: 25 fps (1280×720), 60Hz: 30 fps (1280×720);
DS-2DE2202-DE3/W: 50Hz: 25 fps (1920×1080), 60Hz: 30 fps (1920×1080)
Sub Stream: 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)



Video Compression: H.264 / MJPEG
ROI encoding: Support 4 areas with adjustable levels
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users: Up to 20 users
Dual Stream: Support
Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level: Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Hik-Connect: Support



Client GUI
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200
Web Browser: IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 +



Hikvision DS-2DE2103-DE3 PTZ Camera General
Menu Language: English
Power Supply: 12V DC or PoE((802.3af, class3)
Power Consumption: Max. 6W
Working Temperature/Humidity: -10℃~50℃(14℉~122℉)(indoor dome)
Protection Level: IP54, TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting: Various mounting modes optional
Dimensions: Φ120×83.7mm
Weight (approx.): 340g
Mount Option: Wall mount: DS-1294ZJ
