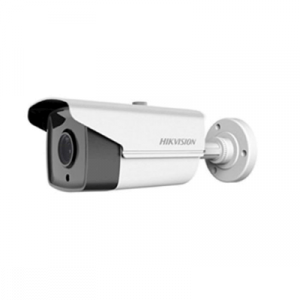

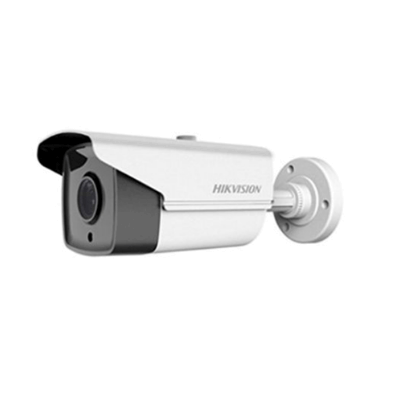

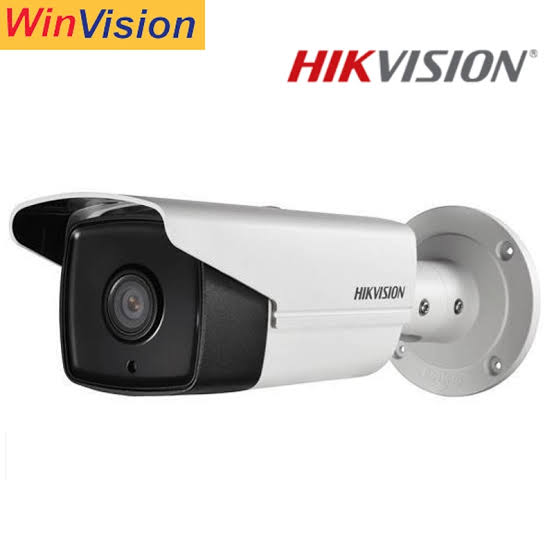

Hikvision DS-2CD2T22FWD-I8 2MP NETWORK BULLET CAMERA


Hikvision DS-2CD2T22FWD-I8 2MP NETWORK BULLET CAMERA

2MP high Max. resolution: 2048 X 1536, HD real-time video,DWDR & 3D DNR EXIR illuminators up to 80m ,IP66- PoE4mm)(3MP,EXIR Bullet)Image chip size 1/3″

CMOS Image Compression H.264 (Baseline & Main Profile) & MJPEG

Indoor / Outdoor, IP66, Colour / monochrome True Day/Night

IR LED ON Supply Volts 12V DC or PoE Power max. 7W

Lens Mount M12 mount Viewing Angle 76.5° Horizontal Field of View

IR Range Up to 80m Max. Images per second 25fbps

63,000.00

Compare

Hikvision DS-2CD2T22FWD-I8 2MP NETWORK BULLET CAMERA

Image Sensor 1/2.8’’ Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.028 Lux @(F2.0,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s ~ 1/10,000 s
Slow Shutter Support
Lens -I5: 4,6,12mm; @F2.0
Lens Mount M12
Day & Night IR cut filter with auto switch
WDR 120dB
Compression Standard
Video Compression H.264/MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps – 16 Mbps

Hikvision DS-2CD2T22FWD-I8 2MP NETWORK BULLET CAMERA Image
Max. Resolution 1920 × 1080
Frame Rate
50Hz: 25fps(1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Enhancement WDR, BLC/3D DNR/ROI
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web
browser
Day/Night Switch Auto/Schedule/Triggered by Alarm In

Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis, Tampering alarm,
Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

Hikvision DS-2CD2T22FWD-I8 2MP NETWORK BULLET CAMERA General
Communication
Interface 1 RJ45 10M/100M Ethernet interface
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply 12V DC±10%, PoE (802.3af)
Power Consumption -I3: Max. 6W; -I5: Max. 7.5W; -I8: Max. 10.5W
Ingress Protection
level IP66
IR Range -I3: 30 meters; -I5: 50 meters; -I8: 80 meters
Dimensions 299.71 × 86.48 × 85.11(11.8’’ × 3.4’’ × 3.35’’)
Weight 1200g (2.65 lbs)
