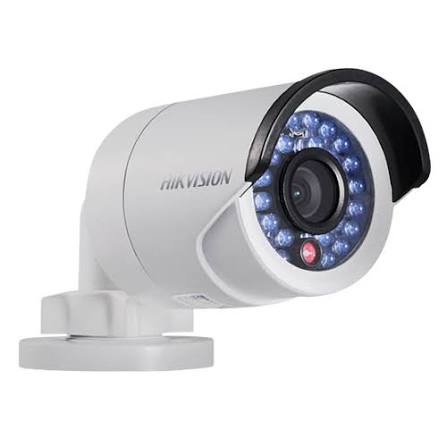

Hikvision DS-2CD2642FWD-I(Z)(S) 4MP Vari-focal Bullet Network Camera


Hikvision DS-2CD2642FWD-I(Z)(S) 4MP Vari-focal Bullet Network Camera

  • 1/3” Progressive Scan CMOS
  • Up to 4-megapixel resolution
  • 120dB WDR
  • 3D DNR
  • Motorized lens 2.8-12mm(-Z)
  • Up to 30 meters IR range
  • Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
  • Audio/alarm I/O (-S)
  • Mobile Monitoring via Hik-Connect
  • 12V DC±25% & PoE(802.3af Class3)
  • Support H.264+
  • IP67

Compare
Hikvision DS-2CD2642FWD-I(Z)(S) 4MP Vari-focal Bullet Network Camera
Image Sensor: 1/3″ Progressive Scan CMOS
Min. Illumination: 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter time: 1/3 s ~ 1/100,000 s
Slow shutter: Support
Lens: 2.8 – 12 mm @ F1.4, motorized lens (-Z), angle of view: 112°~33.8°
Lens Mount: φ14
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB



Hikvision DS-2CD2642FWD-I(Z)(S) 4MP Vari-focal Bullet Network Camera Compression Standard
Video Compression: H.264/MJPEG/H.264+
H.264 code profile: Main Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression: -S: G.711/G.722.1/G.726/MP2L2
Audio bit rate: 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)



Hikvision DS-2CD2642FWD-I(Z)(S) 4MP Vari-focal Bullet Network Camera Image
Max. Image Resolution: 2688 × 1520
Frame Rate: 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Sub Stream: 50Hz: 25fps(352×288),25fps(640×360)
60Hz: 30fps(352×240),30fps(640×360)
Image Enhancement: BLC/3D DNR/ROI
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Day/Night Switch: Auto/Schedule/Triggered by Alarm In



Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour



General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G),ISAPI



Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface



Hikvision DS-2CD2642FWD-I(Z)(S) 4MP Vari-focal Bullet Network Camera General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: Max. 5.5 W (Max. 7.5 W with IR cut filter on)
Weather Proof: IP67
IR Range: Approx 20 to 30 meters(65.6-98.4ft)
Dimensions: 95×105×258.6 mm (3.74” × 4.13” × 10.18”)
Weight: 1200g (2.65 lbs)
NOTE:: * “-S” series support 1-ch audio I/O and 1-ch alarm I/O
