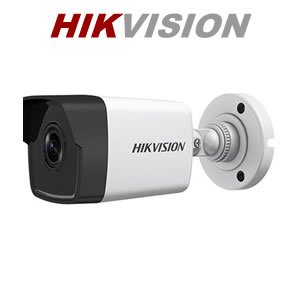

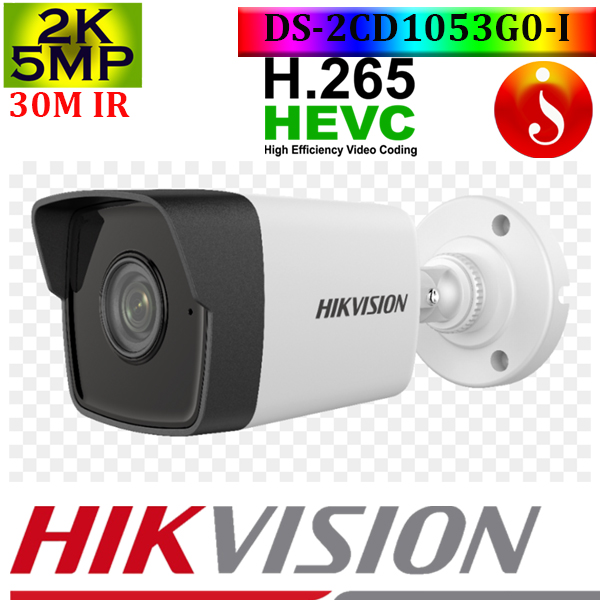

Hikvision DS-2CD1053G0-I 5MP IR Network Bullet Camera
Image Sensor 1/3″ progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Auto-Iris No
Day &Night IR cut filter
DNR (Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment (Bracket) Pan: 0Â to 360Â, tilt: 0Â to 180Â, rotation: 0Â to 360Â
Hikvision DS-2CD1053G0-I 5MP IR Network Bullet Camera Lens
Focal length 2.8 mm, 4 mm, 6 mm
Aperture F2.0
Focus No
FOV 2.8 mm, horizontal FOV 100Â, vertical FOV 55Â, diagonal FOV 117Â 4 mm, horizontal FOV 77Â, vertical FOV 42Â, diagonal FOV 88Â
6 mm, horizontal FOV 51Â, vertical FOV 28Â, diagonal FOV 58Â
Lens Mount M12
Hikvision DS-2CD1053G0-I 5MP IR Network Bullet Camera IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard
Video Compression Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-set
Region of Interest 1 fixed region for main stream and sub-stream
Hikvision DS-2CD1053G0-I 5MP IR Network Bullet Camera Image
Max. Resolution 2560 Ã 1920
Main Stream Max. Frame Rate 50Hz: 20fps (2560 Ã 1920, 1920 Ã 1080, 1280 Ã 720)
60Hz: 20fps (2560 Ã 1920, 1920 Ã 1080, 1280 Ã 720)
Sub-stream
Max. Frame Rate 50Hz: 20fps (704 Ã 576, 352 Ã 288, 640 Ã 480, 320 Ã 240)
60Hz: 20fps (704 Ã 480, 352 Ã 240, 640 Ã 480, 320 Ã 240)
Image Enhancement BLC, 3D DNR
Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, scheduled
Hikvision DS-2CD1053G0-I 5MP IR Network Bullet Camera Network
Network Storage NAS (NFS, SMB/CIFS)
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version 5.5.2
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator, and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Hikvision DS-2CD1053G0-I 5MP IR Network Bullet Camera General
Operating Conditions -30 ÂC to 50 ÂC (-22 ÂF to 122 ÂF), humidity: 95% or less (non-condensing)
Power Supply 12 VDC Â 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Protection Level IP67
TVS 2000V lightning protection, surge protection and voltage transient protection
Material Metal & Plastic
Dimensions Camera: à 70 mm à 172.7mm ( 2.7″ à 6.8″)
With package: 216 mm à 121 mm à 118 mm (8.5″ à 4.8″ à 4.6″)
Weight Camera: Approx. 280 g (0.62 lb.)
With package: Approx: 530 g (1.17 lb.)
