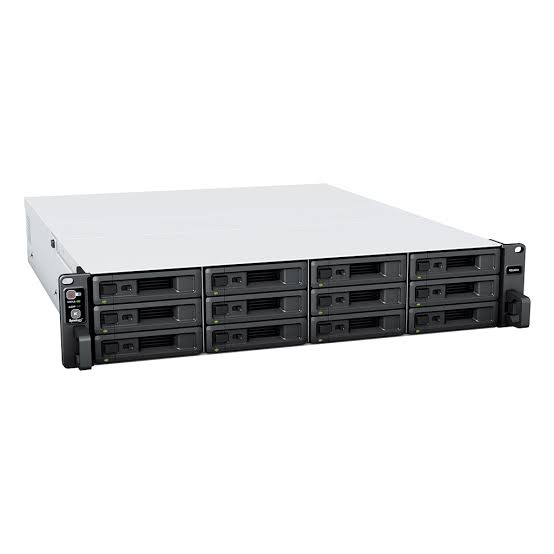

Synology RackStation RS2423+

The Synology RackStation RS2423+ is a powerful 2U rackmount Network Attached Storage (NAS) solution designed for growing businesses, enterprises, surveillance systems, and data-intensive environments that require high-performance storage, centralized data management, and scalable capacity. Equipped with enterprise-grade hardware, advanced data protection technologies, and Synology’s renowned DiskStation Manager (DSM) operating system, the RS2423+ delivers exceptional reliability and flexibility for modern IT infrastructures.

Designed to meet the demands of businesses handling large volumes of data, the RS2423+ combines powerful processing capabilities, high-speed networking, extensive storage scalability, and comprehensive data protection features. Whether deployed as a file server, backup server, virtualization storage platform, surveillance recording server, or private cloud solution, this RackStation offers a robust foundation for business-critical operations.

Enterprise-Class Processing Power

At the heart of the RS2423+ is an AMD Ryzen V1780B quad-core processor featuring 8 threads and clock speeds of up to 3.6 GHz. This enterprise-grade CPU provides the performance required for multitasking environments, handling multiple users, virtual machines, large file transfers, and demanding storage workloads simultaneously. The system also includes hardware encryption acceleration to improve secure data transmission and storage without compromising performance.

Processor Specifications

• AMD Ryzen V1780B Processor
• Quad-Core / 8 Threads
• Base Clock: 3.35 GHz
• Turbo Clock: 3.6 GHz
• 64-bit Architecture
• Hardware Encryption Engine

High-Capacity 12-Bay Storage Platform

The RS2423+ features 12 hot-swappable drive bays supporting both 3.5-inch SATA hard drives and 2.5-inch SATA SSDs. Organizations can easily build large-capacity storage arrays while maintaining flexibility for future upgrades.

For businesses requiring additional storage capacity, the system supports expansion through the Synology RX1223RP expansion unit, increasing total drive bays from 12 to 24 and enabling substantial storage growth without replacing existing infrastructure.

Storage Features

• 12 Drive Bays
• Hot-Swappable Drives
• Supports SATA HDD and SSD
• Expandable to 24 Bays
• Multiple RAID Configurations
• Online Capacity Expansion
• Storage Pool Management
• SSD Cache Support

High-Speed Memory Architecture

The RS2423+ is equipped with 8GB DDR4 ECC memory, ensuring greater system stability and protection against memory-related errors. ECC (Error Correcting Code) memory automatically detects and corrects data corruption, making it ideal for business-critical applications.

The memory can be expanded up to 32GB, allowing organizations to optimize performance for virtualization, file sharing, backup operations, and multi-user workloads.

Built-in 10GbE Connectivity

One of the standout features of the RS2423+ is its integrated 10 Gigabit Ethernet port. Unlike many traditional NAS systems that require optional upgrades, the RS2423+ provides high-speed networking out of the box.

Networking includes:

• 1 × 10GbE RJ45 Port
• 2 × 1GbE RJ45 Ports
• Link Aggregation Support
• Failover Protection
• High-Speed Data Transfers
• Multi-User Network Access

This advanced networking capability allows businesses to handle large-scale backups, virtualization storage, video editing workflows, and high-volume file sharing with ease.

Advanced Data Protection

Data protection is a major strength of the RS2423+. Synology DSM includes multiple layers of security and backup functionality designed to protect critical business information.

Protection Features

• Synology Hyper Backup
• Snapshot Replication
• Active Backup Suite
• Immutable Snapshots
• Disaster Recovery Tools
• Ransomware Protection
• Data Integrity Verification
• RAID Protection
• Secure Encryption

The Btrfs file system provides advanced data integrity mechanisms, including self-healing capabilities, metadata protection, and point-in-time snapshots that help organizations recover quickly from accidental deletions or cyber threats.

Virtualization and Business Applications

The RS2423+ integrates seamlessly with major virtualization platforms, making it an excellent storage backend for virtual environments.

Supported platforms include:

• VMware vSphere
• Microsoft Hyper-V
• Citrix Hypervisor
• OpenStack

Businesses can also deploy numerous Synology applications, including:

• Synology Drive
• Synology Office
• MailPlus
• Virtual Machine Manager
• Chat Server
• Active Backup for Business
• Central Management System

These applications enable the RS2423+ to function as a complete private cloud and collaboration platform.

Surveillance Storage Solution

For security and surveillance deployments, the RS2423+ serves as a powerful recording and management server using Synology Surveillance Station. It can store large volumes of surveillance footage from IP cameras while providing centralized monitoring, event management, and video analytics capabilities.

This makes it suitable for:

• Corporate Offices
• Manufacturing Facilities
• Educational Institutions
• Hotels
• Shopping Malls
• Government Facilities
• Data Centers

PCIe Expansion Flexibility

The system includes a PCIe Gen3 expansion slot that enables organizations to add:

• Additional 10GbE Network Cards
• 25GbE Network Cards
• SSD Cache Cards
• Advanced Network Interfaces

This flexibility ensures the platform can adapt to evolving business requirements and future infrastructure upgrades.

Synology DiskStation Manager (DSM)

The RS2423+ runs Synology’s award-winning DSM operating system, providing an intuitive web-based management interface for administrators.

DSM Features Include:

• Centralized Storage Management
• User and Permission Control
• Remote Access
• Secure File Sharing
• Cloud Synchronization
• Monitoring and Reporting
• Multi-Site Management
• Business Continuity Tools
• Security Center

The platform simplifies storage administration while delivering enterprise-level functionality.

Technical Specifications

Why Choose the Synology RS2423+?

The Synology RackStation RS2423+ delivers enterprise-class storage performance, built-in 10GbE networking, scalable capacity, ECC memory protection, advanced backup solutions, and virtualization support in a compact 2U rackmount design. It is an ideal choice for businesses seeking a reliable, scalable, and secure NAS platform capable of supporting file sharing, virtualization, backup, surveillance, and private cloud deployments from a single centralized system. With expansion support up to 24 drive bays and a powerful AMD Ryzen processor, the RS2423+ provides a future-ready storage solution that can grow alongside your organization’s needs.
