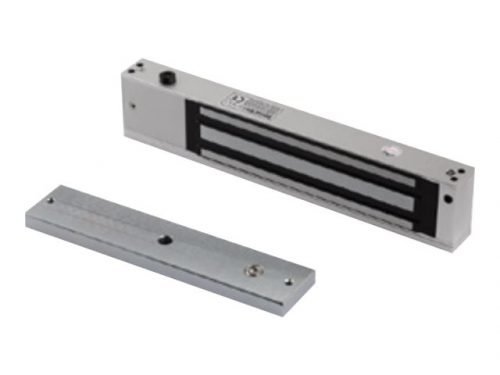

Hikvision Single door Magnetic Lock DS-K4H250S

Its a single door magnetic lock  designed for wooden doors, glass doors, and steel doors with 90 degree opening angles. The maximum thrust of the lock is 300 kg. It can be used for controlling door opening/closing, and the indicator shows the door status

24,500.00

Compare

Hikvision Single door Magnetic Lock DS-K4H250S is a single door  magnetic lock  designed for wooden doors, glass doors, and steel doors with 90 degree opening angles. The maximum thrust of the lock is 300 kg. It can be used for controlling door opening/closing, and the indicator shows the door status.

General
Maximum Thrust: 300kg Linear Thrust
Working Current: 12V/500mA 24V/250mA
Dimension of Lock Body: 240×49×25.5mm (9.45×1.93×1.00″)
Power Supply: 12VDC /24VDC
Signal Output: Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking
Dimension of Armature Plate: 180×38×11mm (7.1×1.5×0.4″)
Suitable Doors: Wooden Door, Glass Door, Metal Door, Fireproof Door
LED Indicator: Red (Door is Unlocked) Green (Door is Locked)
Lock Body of door access control: Eco-friendly Zinc Electroplating Operated
Shell: Hard Anodizing Electroplating Operated
Armature Plate: Eco-friendly Zinc Electroplating Operated
Working Humidity: 0 to 95% (relative humidity)
Working Temperature : -10° C to 55° C (14° F to 131° F)
Weight: 2.1kg(4.63lb)
