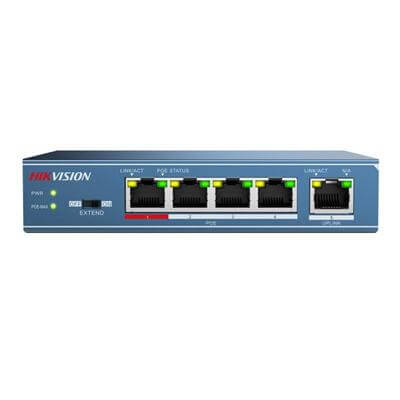

Hikvision DS-3E0105P-E 4-ports PoE Switch

Hikvision DS-3E0105P-E 4-ports PoE Switch
Network Ports:
5
PoE Port:
4, 10/100Mbps RJ45 ports
Uplink Port:
1, 100M Ethernet Port
Standard
Network Protocol:
IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
Performance
Switching Capacity:
1Gbps
Max. Forwarding Rate:
0.74Mpps
High Priority Ports:
Port 1
Forwarding Mode:
Store-and-forward
MAC Address Table:
1k
Flow Control:
IEEE802.3x full duplex
Power Over Ethernet
PoE Standard:
IEEE802.3af, IEEE802.3at
PoE Power Budget:
58W
Working Mode:
Extend On:250m,10M,CAT 5e
Extend Off:100m
General
Power Supply:
51V DC, 1.25A
Power Consumption:
≤63W
Surge Protection:
4KV
Working Temperature:
Temperature: 0℃-40℃
Working Humidity:
Humidity: 10%-90% , non-condensing
Storage Temperature:
Temperature: -40℃-70℃
Storage Humidity:
Humidity: 5%-90% , non-condensing
Weight:
0.299kg
Dimension:
132 mm* 93.3mm * 27.6mm

IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant

4 x 10/100Mbps Auto-MDIX PoE ports

Provides up to 30 watts per PoE port

PoE power budget 58W

4 kV surge protection for PoE ports

IEEE 802.3x flow control support

Plug-and-play installation

1 Gbps switching fabric

448 Kbits RAM Data Buffer

1K MAC address entries

Sturdy metal enclosure
